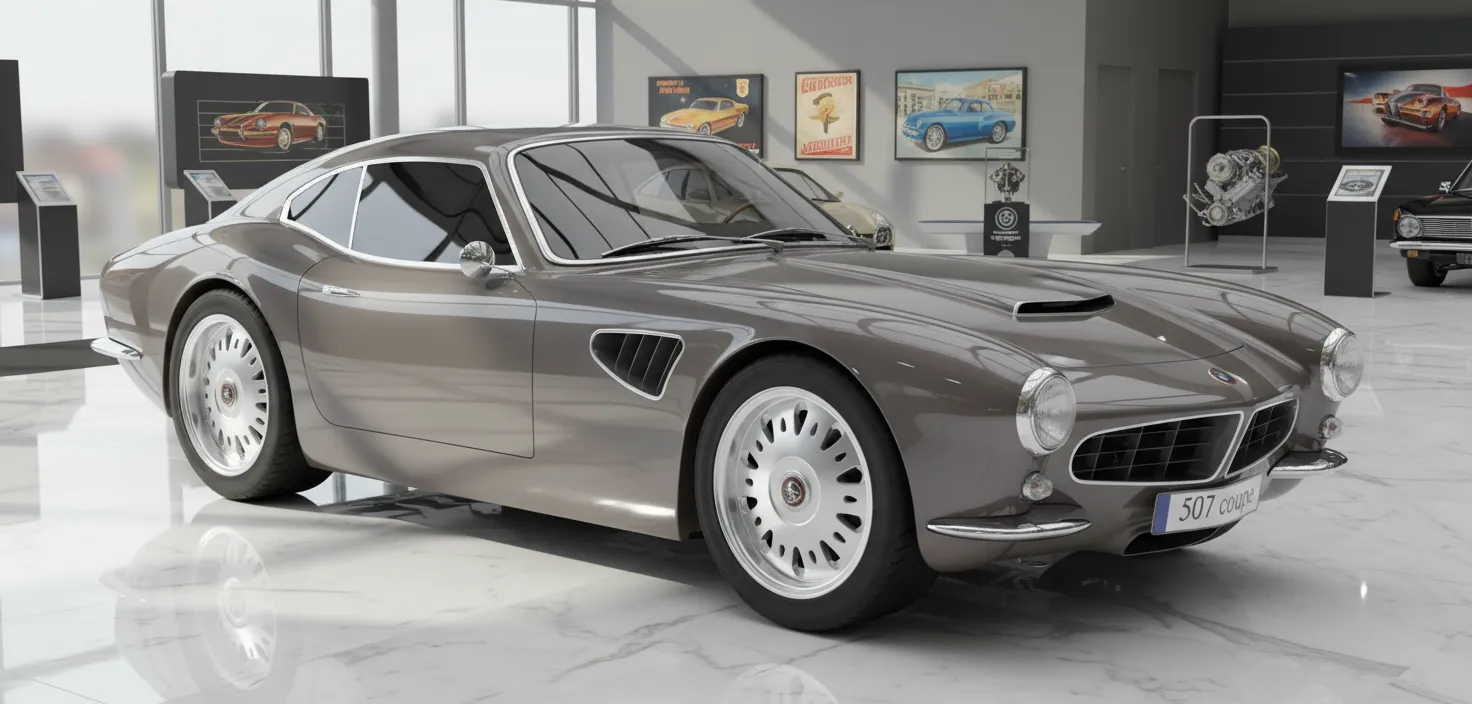

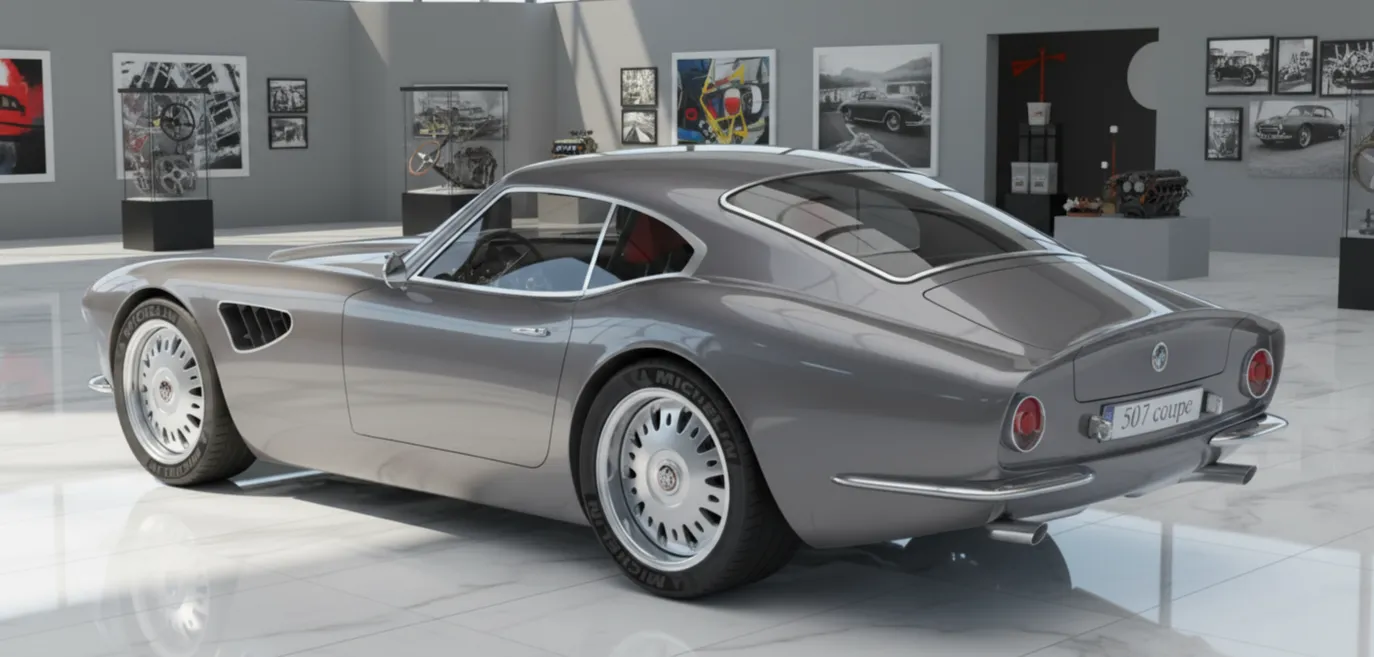

NORMAN 507 COUPE
The 1950s, 1960s were the golden age of automotive design. The BMW 507, which was made exclusively with convertible bodywork, is undoubtedly one of the most striking representatives of this era. Our aim is to make a fastback coupe similar to this car with modern technical characteristics, safety and practicality for everyday use, by preserving the charm of the 1950s.

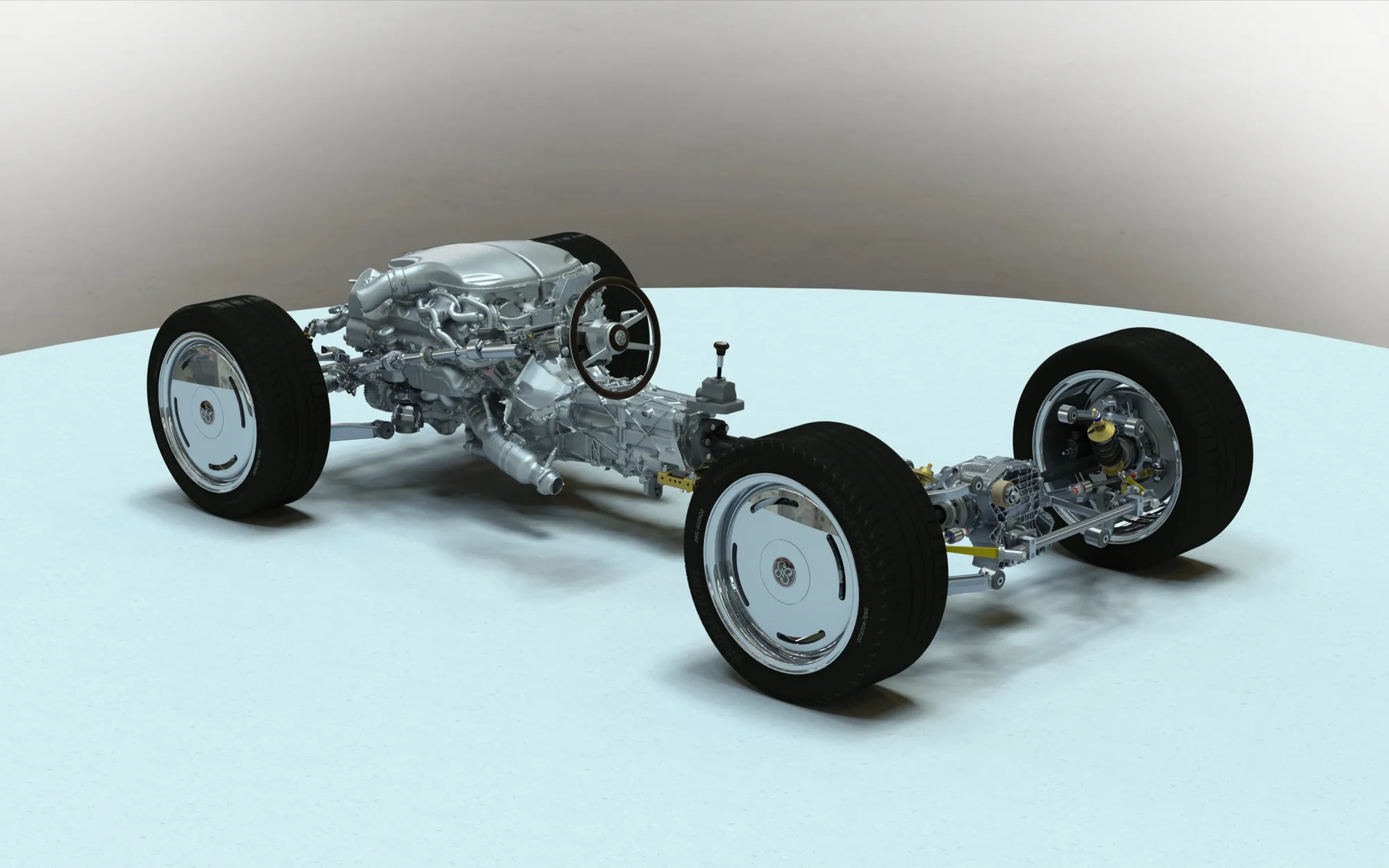

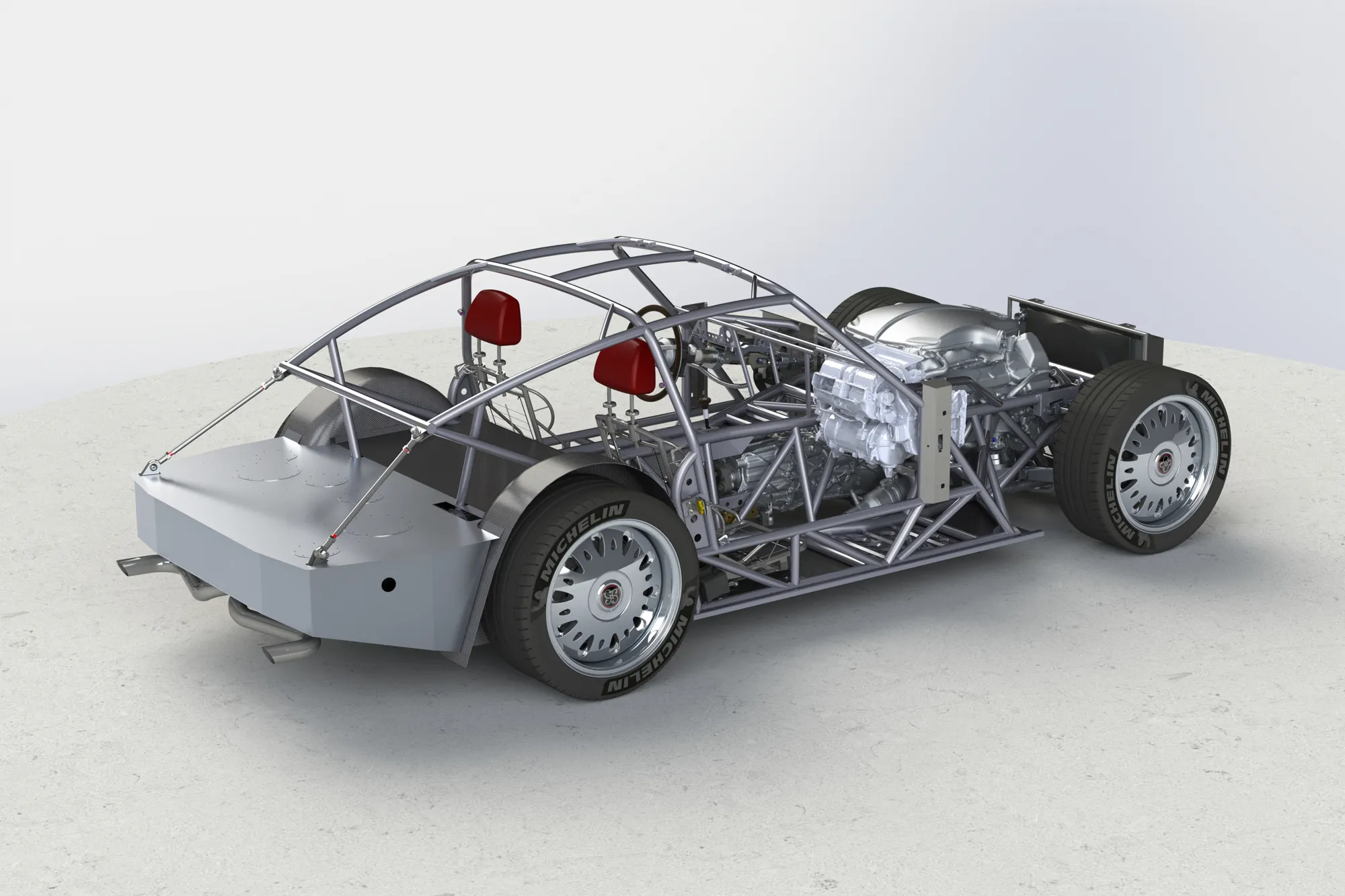

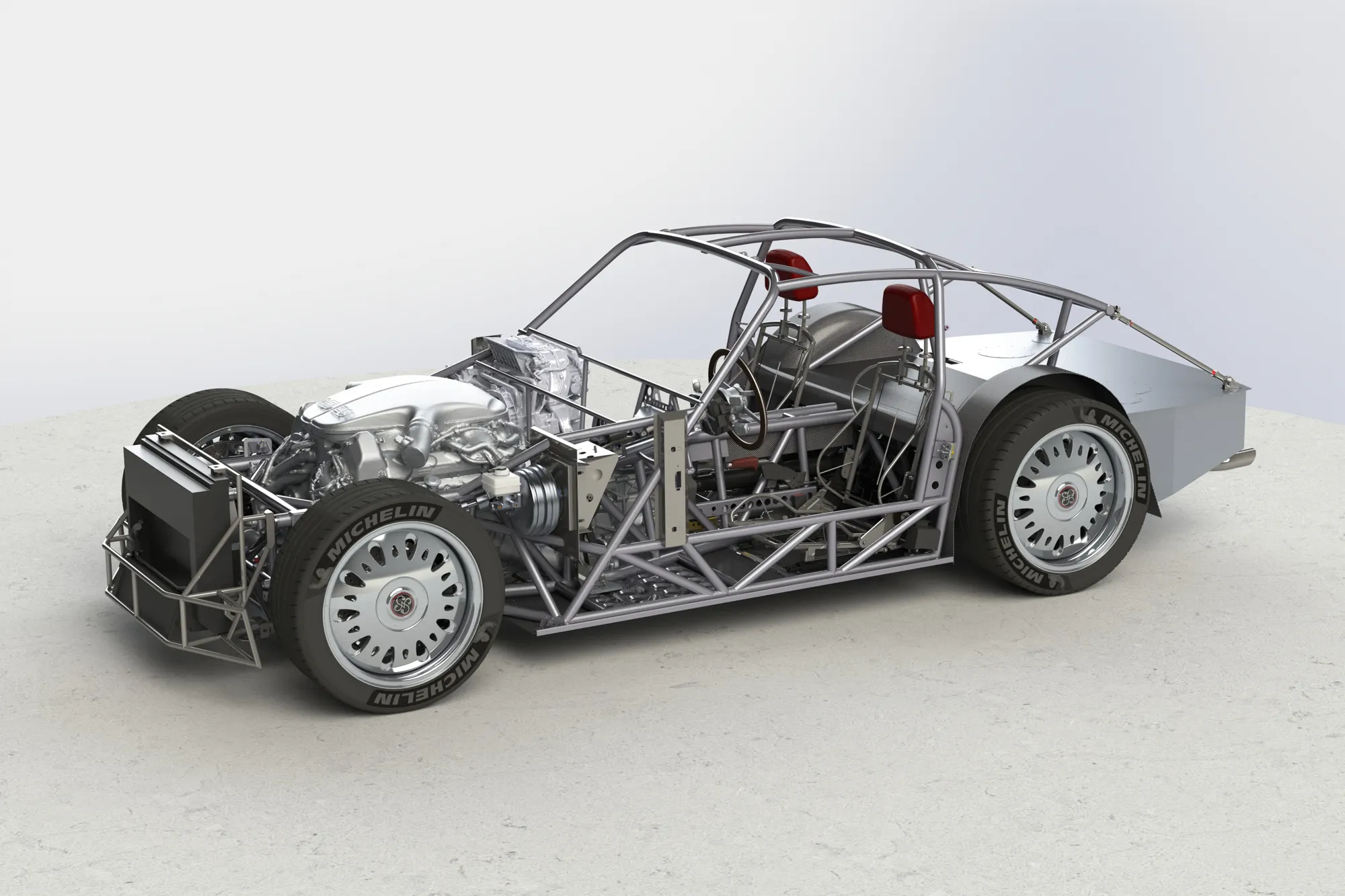

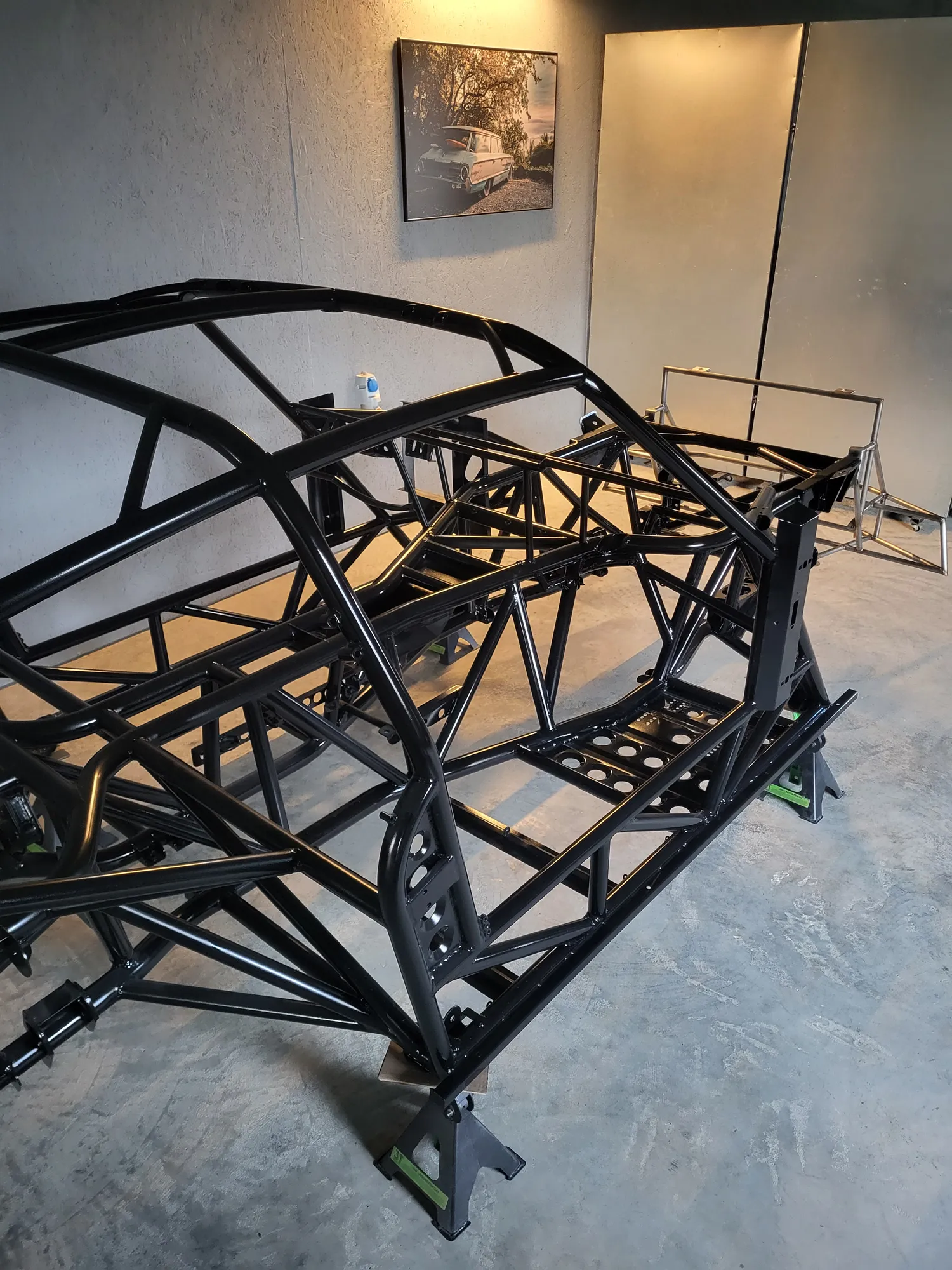

| Chassis | Tubular space frame (DOCOL R8 racing tubes) with carbon fiber reinforcement panels |
| Body | Carbon fiber panels with glass and metal elements |

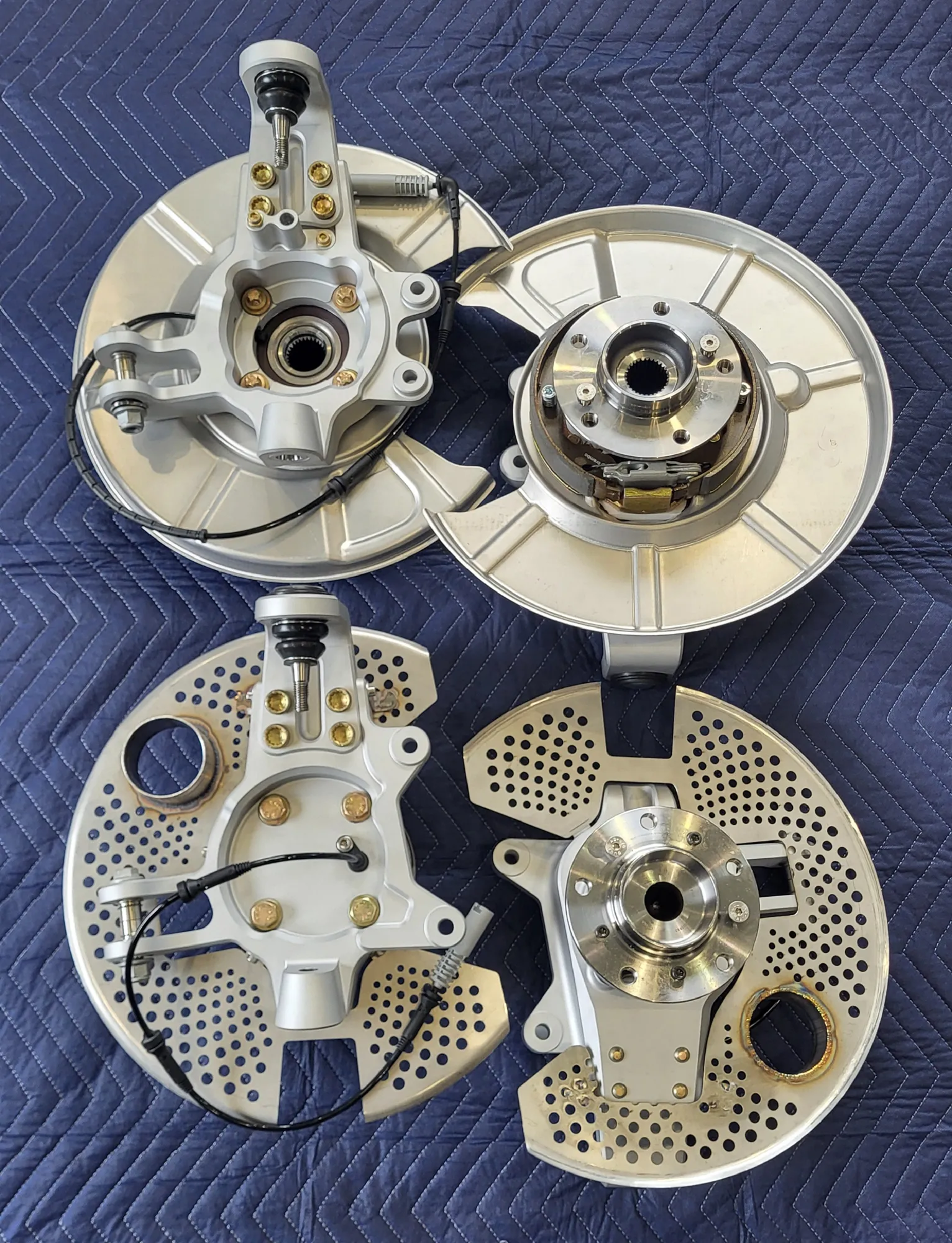

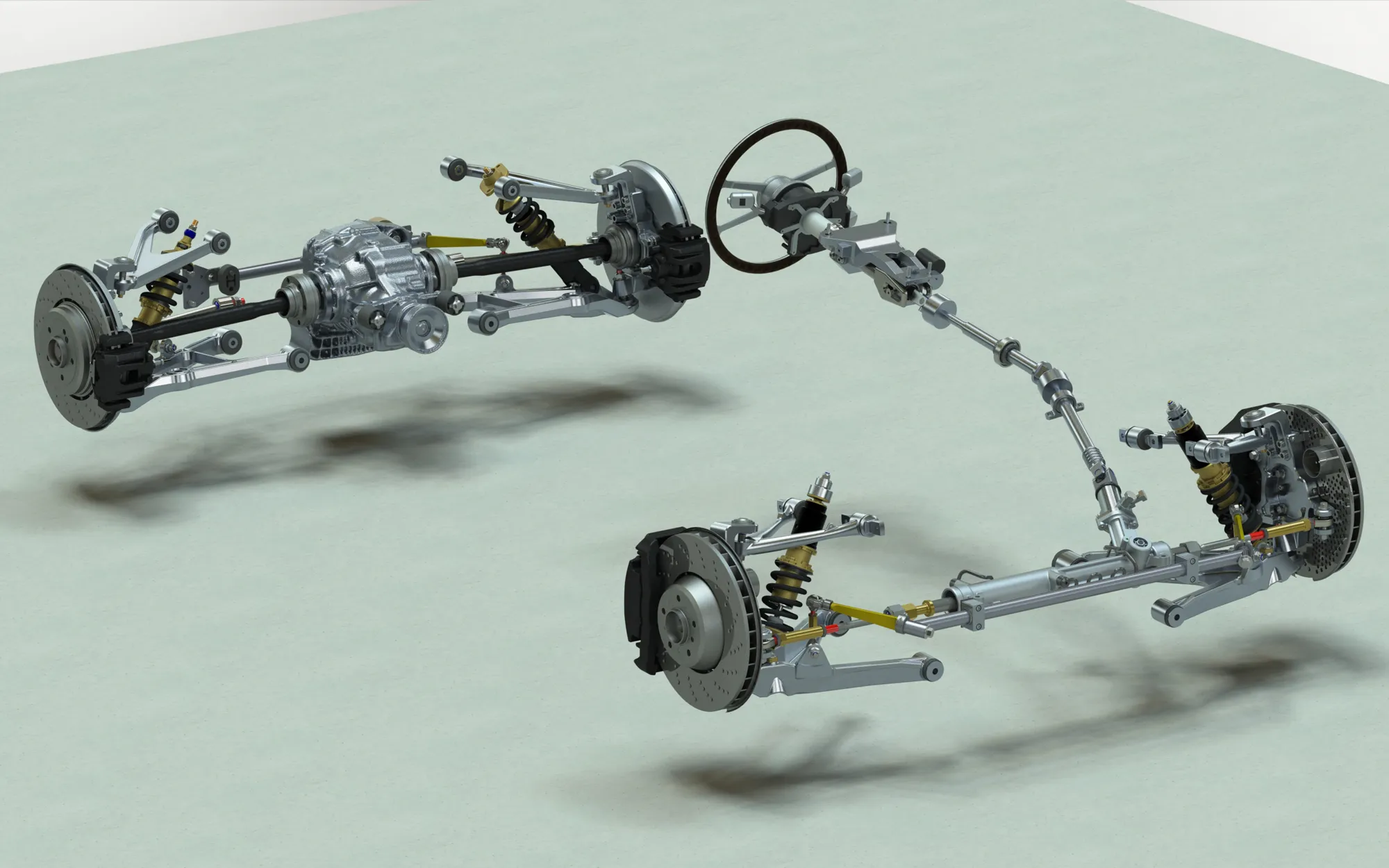

| Suspension | Aluminium double wishbones with adjustable shock absorbers |
| Engine | BMW S85B50 90° V10 5.0 L, 507 HP, 520 Nm |
| Gearbox | 7 speed SMG-III or 6 speed manual |
| Brakes | BMW OEM |
| Fuel system | BMW OEM |
| Interior | Leather – BMW DAKOTA |
| Wood – matte black ash | |
| Metal – anodized aluminium, polished stainless steel | |
| Length | 4570 mm |
| Width | 1850 mm |
| Height | 1280 mm |
| Wheelbase | 2600 mm |
| Fuel tank | 70 L |
| Weight | 1300 kg |
| Wheels | Front 9×20; rear 10×20 |
| Tires | Front 255/45 ZR20 ; rear 285/40 ZR20 |
UPCOMING PROJECT
